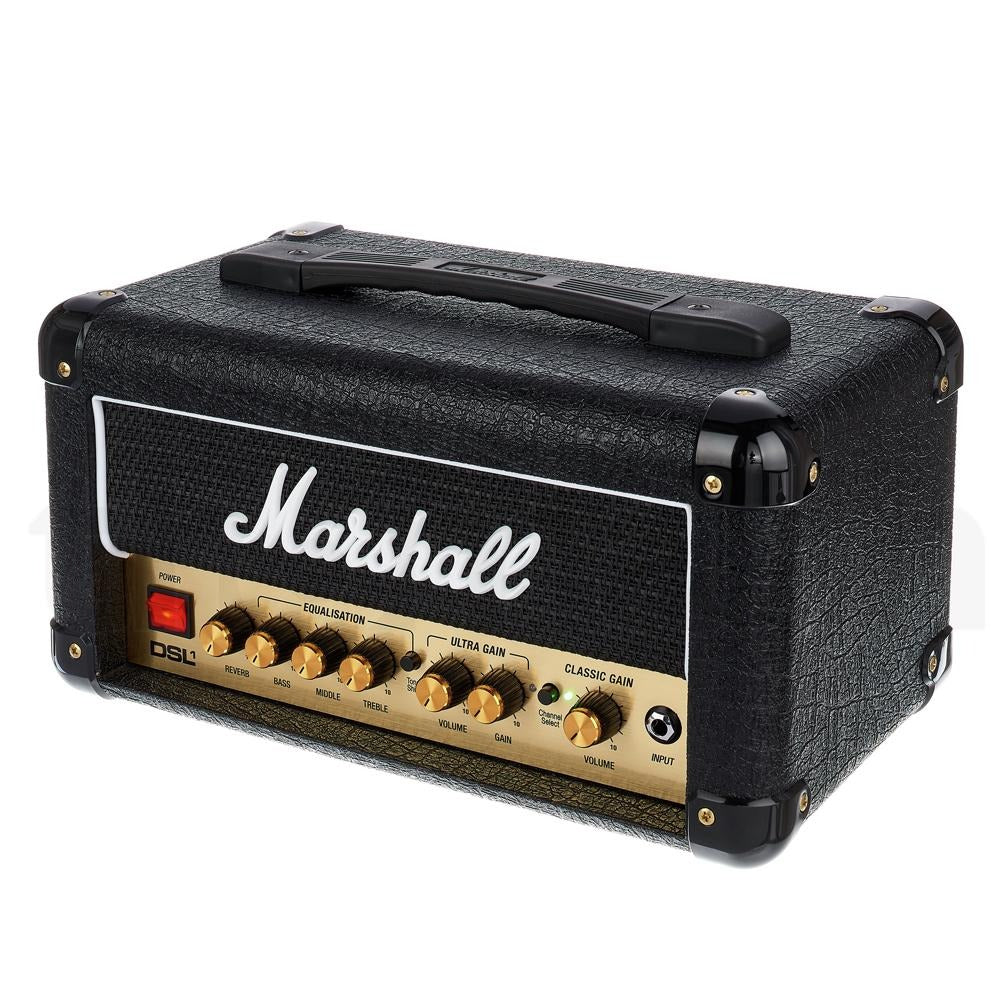

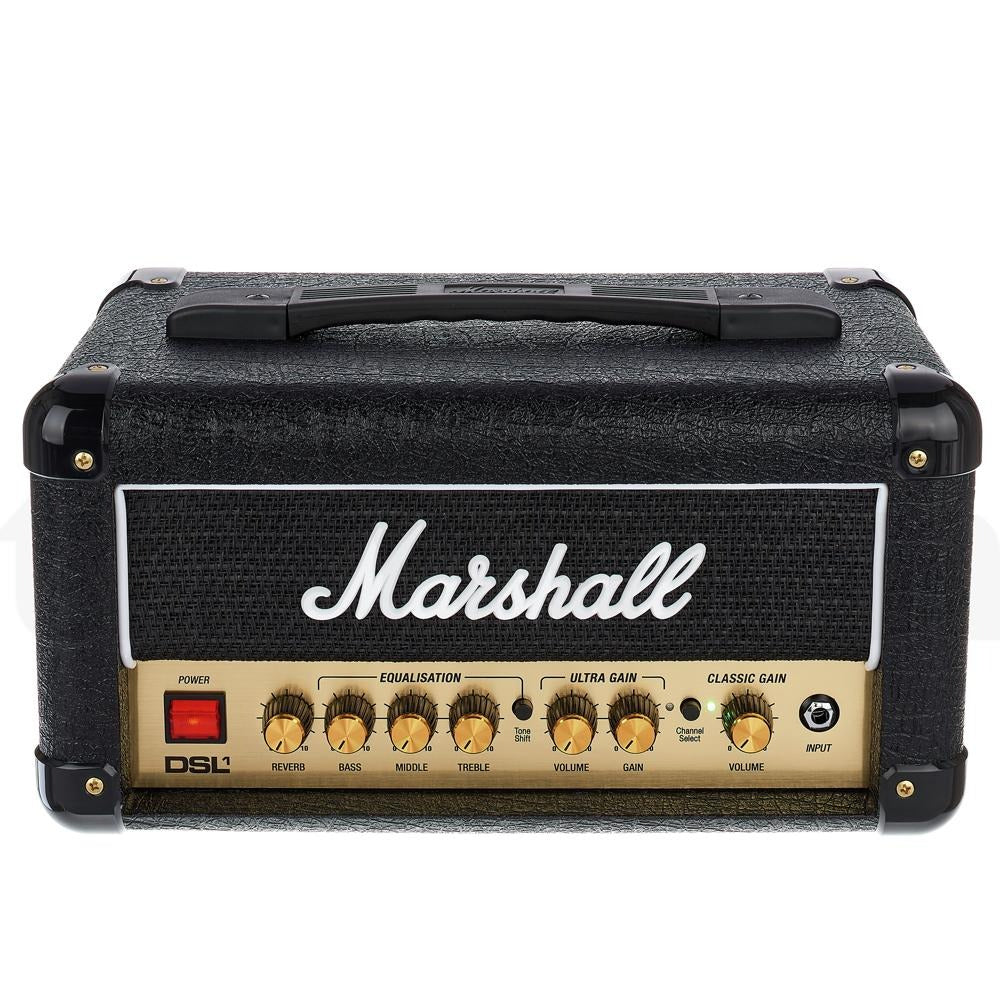

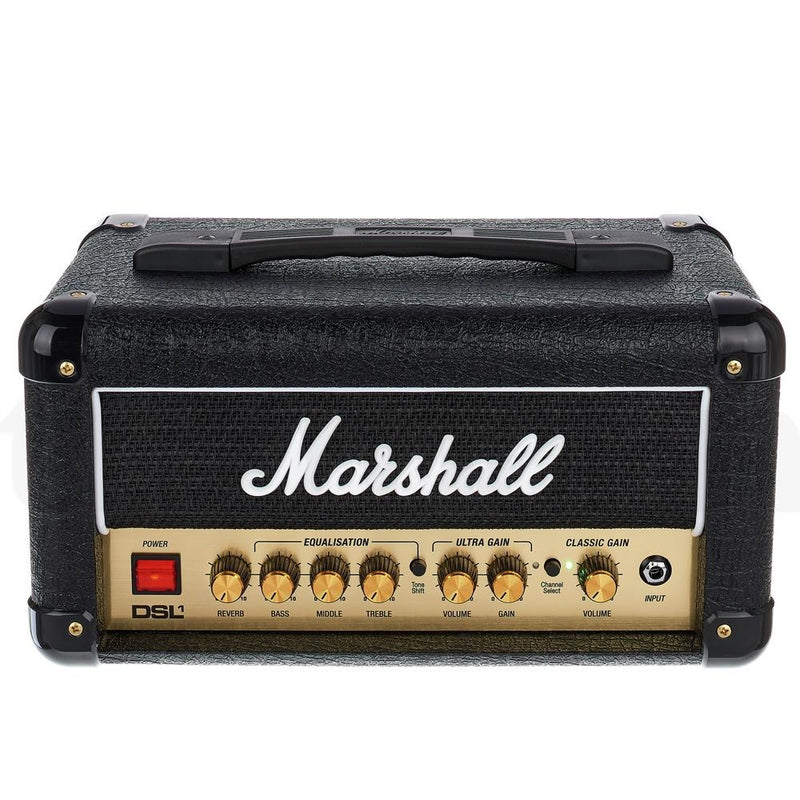

Marshall DSL-1HR 1 Watt Tube Amplifier Head

The Marshall DSL‑1HR is a compact 1 W (switchable to 0.1 W) all-tube amplifier head delivering classic Marshall tone. Featuring dual channels (Classic and Ultra Gain), 3-band EQ with Tone Shift, onboard reverb, and series effects loop, it offers versatile performance and recording-ready output. This powerhouse includes footswitch support (PEDL‑90011) and emulated line/headphone output for home and studio use.

SPECIFICATIONS:

• Model: DSL‑1HR (Head)
• Output Power: 1 W RMS (switchable to 0.1 W)
• Channels: 2 (Classic Gain, Ultra Gain)
• Tubes:
  • Preamp: 2× ECC83 (12AX7)
  • Power: 1× ECC82 (12AU7)
• EQ: Bass, Middle, Treble + Tone Shift switch
• Effects: Digital reverb; series FX loop (send/return)

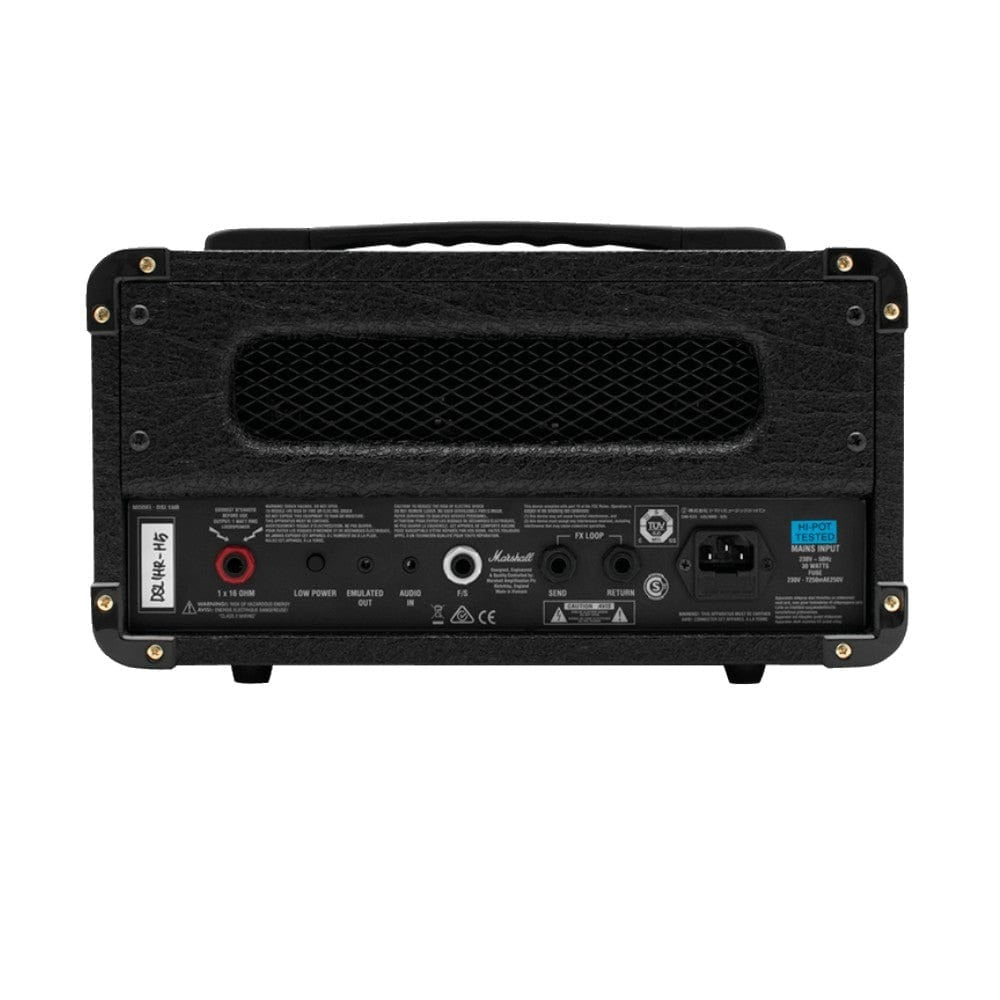

• Outputs:
  • 1/4″ speaker output (16 Ω load only)
  • Emulated 3.5 mm line/headphone output (Softube emulation)
• Inputs:
  • 1/4″ guitar input
  • 3.5 mm aux input
• Footswitch: Supports PEDL‑90011 (included)
• Dimensions: 360 × 210 × 215 mm
• Weight: 5.6 kg
• Construction: Compact, road-ready valve head
