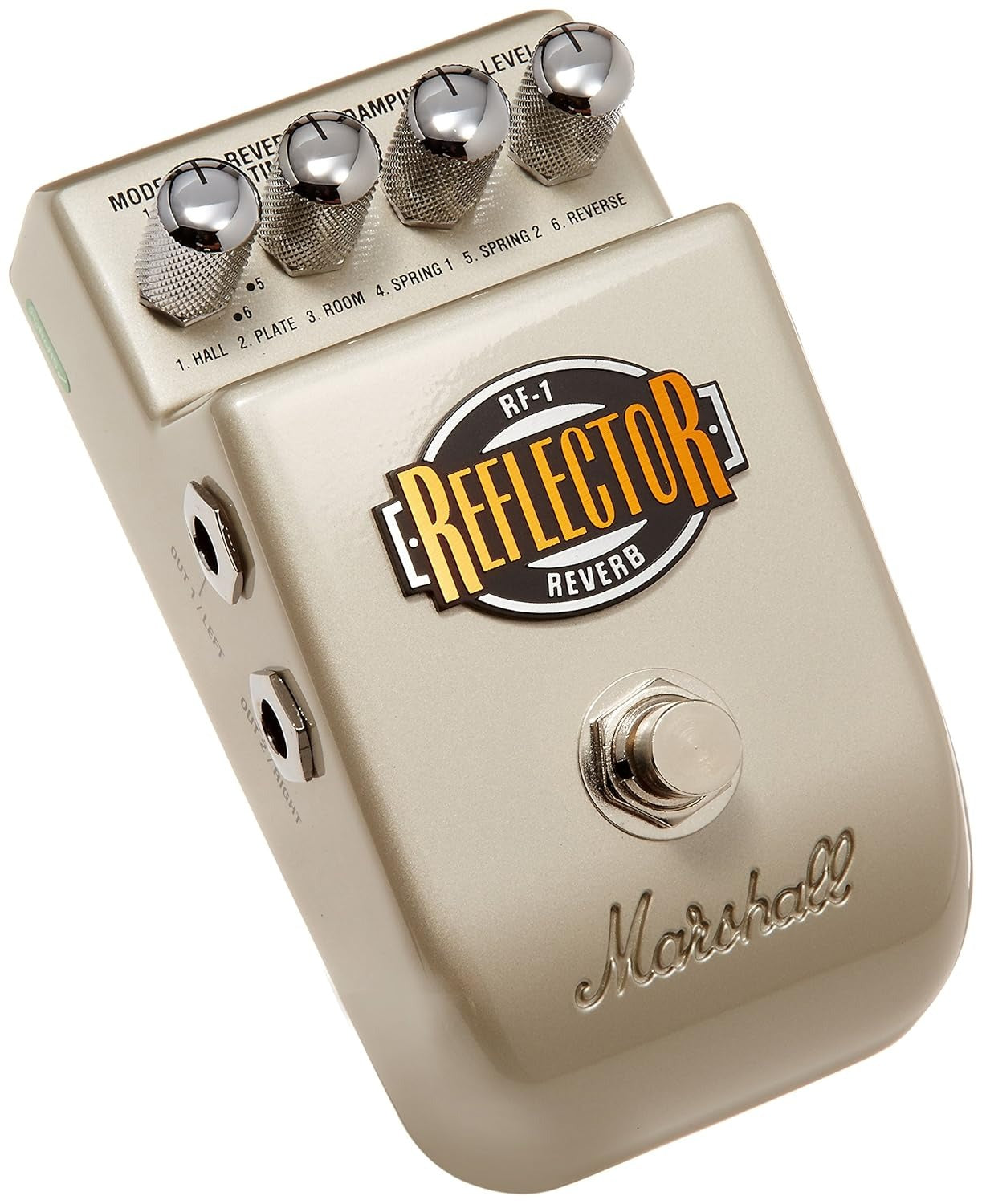

Marshall PEDL-10037 RF-1 Reflector Reverb Pedal

The Marshall RF‑1 Reflector Reverb Pedal delivers six classic reverb styles—Hall, Plate, Room, Spring 1, Spring 2, and Reverse—in a rugged pedalboard-safe package. It features Time, Damping, and Level controls, an expression-pedal input, and dual outputs (bypass + spill‑over stereo). With passive bypass and a durable metal housing, it brings vintage amp-style ambience to any rig.

SPECIFICATIONS:

• Model: PEDL‑10037 RF‑1 Reflector
• Reverb Modes: Hall, Plate, Room, Spring 1, Spring 2, Reverse

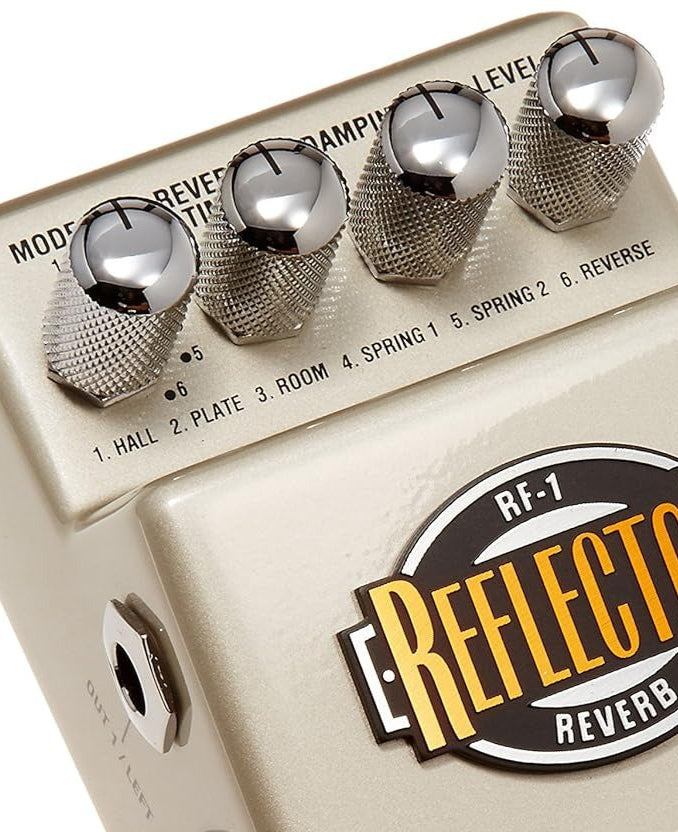

• Controls: Mode selector, Time (decay), Damping (tone), Level (mix)
• Expression Input: ¼″ jack to control reverb time dynamically
• Outputs:
  • Out 1 (Left/Bypass, true-bypass dry signal)
  • Out 2 (Right/Spill‑over stereo output for lush tails)
• Bypass Type: Passive/true-bypass (no tone loss)
• Power: 9 V DC centre–negative
• I/O Impedance: Input > 1 MΩ; Output load < 1 kΩ
• Dimensions: 120 × 65 × 55 mm;
• Weight: 510 g
• Construction: Rugged metal chassis built for road durability
